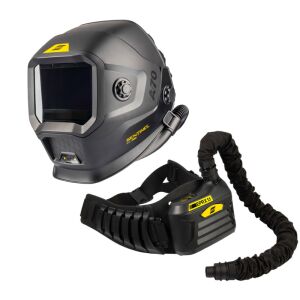

Sentinel A70 Air PRO – Advanced Protection with ESAB EPR X1.1. PAPR Complete Unit

Delivery includes: Full welding helmet assembly; replacement ADF cover lenses; carry bag; LED worklight ”AA” battery; USB-C charging cable, ESAB EPR X1.1 blower unit, waist belt and shoulder harness, rechareable lithium ion battery, battery charger, air flow tester, main HEPA filter assembly including pre-filter and spark arrestor, air tube and flame resistant air tube cover.

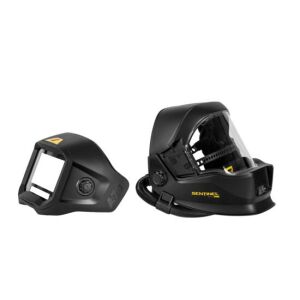

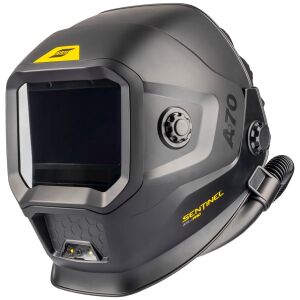

The Sentinel A70 Air Pro combines the rugged performance of the A70 Pro with the highest level of respiratory protection. Featuring an integrated air duct system, the helmet connects to ESAB’s EPR-X1.1 PAPR to deliver EN 12941 TH3P-certified filtration, ensuring a clean, reliable air supply in the toughest welding environments.

A wide-view ADF with a 3/5–13 adjustable shade range keeps you in control, while the flip-up design and oversized grinding shield let you switch seamlessly between tasks. For low-light conditions, the 50-lumen LED work light improves visibility, and Bluetooth connectivity through the ESAB Helmet Connect app provides digital control and customization.

• Large 123 x 75 mm (4.8 x 3 in.) ADF view area with  3/5-13 adjustable shade range in 0.5 shade increments

• 10-step delay and sensitivity adjustment

• Fully-digital user interface with internal and external control options

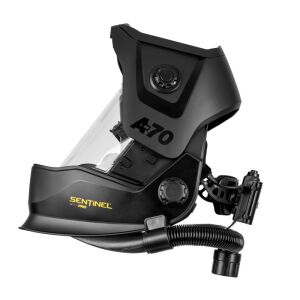

• Flip-ADF bracket is removable for extended finishing operations

• Huge, 150 x 194 mm (5.9 x 7.625 in.) grinding face shield

• 50-lumen LED work light to aid in work setup and inspection when ambient light is poor

• Compatible with ESAB’s Helmet Connect app via Bluetooth connection

• Rechargeable lithium battery

• EN 19241 TH3P filtration with ESAB’s EPR-X1.1 PAPR

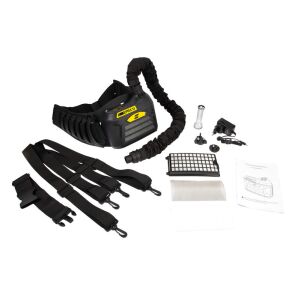

ESAB’s EPR-X1.1 PAPR unit connects seamlessly with all current ESAB prepared for air welding helmets and provides advanced respiratory protection from harmful welding fume particulates.

This PAPR is designed for applications ranging from occasional use to full-time industrial applications. The EPR-X1.1 offers a robust, compact housing with a powerful blower to ensure maximum life and performance. Check your battery status, fan settings and filter conditions at a glance with quick-access status LED lights. Additionally, the PAPR provides audible and vibratory alerts to notify the user of low air flow (indicating a needed filter change) and low battery conditions.

The EPR-X1.1’s turbo unit is controlled with easily-accessed push buttons allowing three airflow speed ranges of 170/190/210 l/minute. The HEPA-quality, EN12941 TH-3P certified two-stage filter and spark arrestor are easily accessed through a removable front door.

• Compatible with all ESAB prepared for air helmets: Sentinel A50; Sentinel A60; Savage A50 LUX; Savage A-40; G-30/40/50; F-20

• User adjustable air flow 170/190/210 l/min

• Li-Ion battery pack (up to 10h duration @ 170 l/min)

• P3 filter and pre-filter

• International intelligent charger (interchangeable pins)

• Audio/visual/vibration blocked filter and low battery alarm
