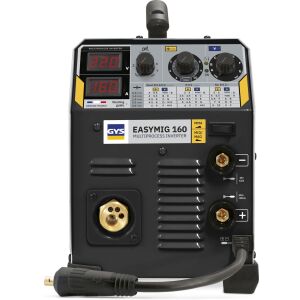

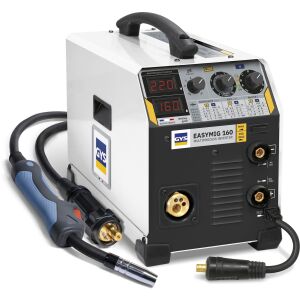

GYS EASYMIG 160 Single-Phase Multi-Process Welder (Ref: 032255)

Product Overview

The GYS EASYMIG 160 (032255) is an ultra-lightweight, semi-automatic multi-process inverter power source that masterfully combines MIG/MAG, flux-cored (No-Gas), and MMA (Stick) processes into a single compact unit. Operating on a standard single-phase 230V (16A) power supply, this 3-in-1 machine delivers an adjustable output up to 160A, making it the perfect choice for light structural steel, stainless steel, and aluminium fabrication.

Weighing an astonishingly light 10.1 kg and built with a reinforced mechanical structure, the EASYMIG 160 is custom-built for exceptional portability across the worksite or out in the field. Its highly intuitive interface and dual digital displays ensure that both professional tradespeople and site contractors can set accurate parameters in seconds.

Key Product Features & Capabilities

• 3-in-1 Inverter Versatility: Seamlessly handles traditional gas-shielded MIG/MAG, outdoor-ready No-Gas flux-cored wire, and MMA stick electrodes.
• Optimized Outdoor Welding: Thanks to its quick-change polarity reversal cable, the machine is instantly ready for No-Gas flux-cored wire welding, allowing you to work efficiently outdoors without a gas bottle interfering with the wind.
• Integrated Premium Wire Feeder: Features a robust two-roll wire-feed motor compatible with both Ø 100 mm (1 kg) and Ø 200 mm (5 kg) wire reels. It comes factory-fitted with 0.8 mm steel and 0.9 mm no-gas rollers.
• User-Friendly Control Interface: Includes a simplified front-panel display that guides operators through manual arc dynamic adjustments, wire feed speeds (3 to 10 m/min), and voltage settings (15 to 22V) with tactile, glove-friendly knobs.
• Advanced MMA Functionality: Delivers a highly stable welding current suitable for rutile electrodes up to Ø 3.2 mm, enhanced by integrated Anti-Stick technology to prevent electrode freezing.
• Site-Ready Durability: Built with an ergonomic handle, a shock-absorbing reinforced mechanical body, and rubber feet to withstand the vibrations of demanding workshop floors.

What’s Included in the Box?

The GYS EASYMIG 160 is supplied ready to work, complete with:

• Detachable 150A EURO MIG/MAG Torch (2.20 m length) optimized for steel
• Earth Clamp with 1.6 m / 16 mm² cable
• Electrode Holder with 1.6 m / 16 mm² cable
• Accessory Box (including a 0.9 mm contact tip, gas nozzle, contact tip spanner, and 1 m gas pipe with clamps)
