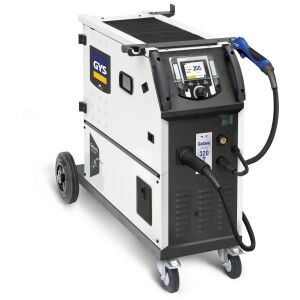

GYS GALAXY 320T Three-Phase Multi-Process Pulse Welder (Ref: 086838)

Product Overview

The GYS GALAXY 320T (086838) is a professional-grade, three-phase multi-process inverter power source engineered to handle the full spectrum of MIG/MAG, TIG, and MMA welding applications. Operating on a 400V (16A) industrial supply, this state-of-the-art workshop machine outputs up to 320A, offering the perfect balance of raw power and fine electronic arc control.

Designed and manufactured in France, the GALAXY 320T features an advanced MIG/MAG pulse mode that delivers incredibly precise control over the arc energy. This technical control dramatically reduces spatter, increases welding speeds by up to 30%, and minimizes material deformation. It stands as the ultimate workshop solution for producing exceptionally clean, smooth, and touch-up-free welds on light-gauge aluminium and stainless steel alloys.

Key Product Features & Capabilities

• Premium 4-Mode MIG/MAG Welding: Includes Standard mode for fast, everyday fabrication; Pulse mode to slash spatter and eliminate rework across all positions; ModulArc for highly aesthetic beads on aluminium alloys; and Manual mode for tailored adjustments of parameters.

• Intelligent Synergy Control: Pre-loaded with over 40 distinct synergy curves that automatically calculate optimal parameters across varied industrial materials including Steel, AlMg, AlSi, CrNi, and CuSi.

• Industrial Wire Drive Mechanism: Built with a motorised 4-roller wire feeder integrated with a digital encoder to guarantee flawless wire tracking. Efficiently drives steel/stainless wires (Ø 0.6–1.2 mm), aluminium wire (Ø 0.8–1.2 mm), and heavy flux-cored wires (Ø 0.9–1.6 mm).

• Microprocessor Arc Management: Digital arc control provides instant, clean arc ignition while automatically suppressing cratering flaws at the tail end of the weld bead.

• True Multi-Process Manual Output: Handles high-amperage production requirements, running advanced MIG/MAG pulse, MMA DC/Pulse (basic and rutile electrodes up to Ø 5 mm), and high-precision TIG DC Lift/Pulse.

• Comprehensive Data Traceability: Delivers full tracking and logging of all completed weld beads in strict accordance with the demanding EN 3834 standard.

• Next-Gen 3.5" Color HMI Screen: Features a bright, multilingual digital user interface. Includes an "Easy" streamlined layout for rapid operation without intensive training, and an "Expert" view to control every specific phase of the welding cycle.

• Advanced Customization & Jobs: Store up to 200 custom welding programs (Jobs) for rapid changeovers on recurring workshop components. Features a convenient USB port to clone machine configurations, back up records, handle firmware updates, and customize screens via a free online tool.

• Workshop Ergonomics: Built into an IP23S rated chassis to handle tough working environments, complete with reinforced wheels, an on-board storage compartment, an integrated cylinder holder for gas bottles up to 4 m³ (20 L), a quick front polarity changer, and internal LED lighting across the feeder and spool.

What’s Included in the Box?

The GALAXY 320T industrial configuration comes supplied with:

• Professional MB36 MIG Torch (4-metre length, 50 mm² cable)
• Interconnection/Mains Cable (1.5 m length)
• Factory-fitted 1.0 / 1.2 mm original drive rollers
