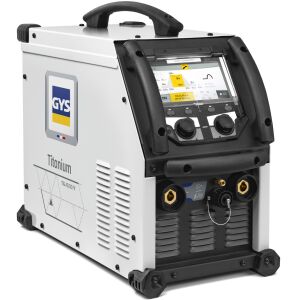

Discover the TITANIUM 231 AC/DC FV - WITH ACCESSORIES (TIG26DB - 8m)

The GYS TITANIUM 231 AC/DC is a compact, high-performance AC/DC TIG welding machine that combines power, precision and reliability. Designed for demanding professionals, it offers a wide range of welding processes (AC TIG, DC TIG, MMA) and ensures consistent quality on all materials: mild steel, stainless steel, aluminium, copper and titanium. Its Pulse mode optimises arc control and minimises distortion, guaranteeing flawless results, even on thin materials. Featuring an intuitive XL digital interface, the TITANIUM 231 AC/DC offers quick and easy access to all welding parameters. Combining advanced technology with professional ergonomics, it sets the new benchmark for premium TIG welders.

PATENTED TIG WIZARD SOLUTION

• Advanced synergic mode for maximum productivity in tacking and welding components made of aluminum, steel, stainless steel, and copper, with or without filler metal.
• 5 Joint Types: Butt weld (BW), Lap weld (FW), Inside corner (BP), Outside corner, and Wire splicing.
• Wizard Lab: For creating customized welding cycles (developer mode).

7 ADVANCED TIG WELDING MODES (DC / AC)

• Standard DC: Smooth current welding for the majority of ferrous materials.
• Pulsed DC: Allows component assembly while limiting heat input, thereby minimizing distortion.
• FastPulse: Pulsations up to 20 kHz; retains the benefits of pulsed TIG while eliminating acoustic noise.
• PulseInPulse: Double-pulse welding for increased precision on high-grade/exotic materials (Titanium, Inconel, Duplex).
• Standard AC: Welding of aluminum and its alloys (Al, AlSi, AlMg, AlMn, etc.).
• Pulsed AC: Allows component assembly while limiting heat input, thereby minimizing distortion.
• AC Mix: Alternating AC and DC current to increase welding speed.

+ MMA Modes: MMA, MMA AC, and Pulsed MMA (weldable electrodes up to Ø 8 mm).

EXPERT TIG SETTINGS

• 4 Tack Welding Modes: Spot / Multi Spot: Traditional tack welding before sheet metal welding. Tack / Multi Tack: Ultra-precise, oxidation-free tack welding, reducing the risk of distortion on thin sheets.
• 3 Arc Striking Types: Lift, HF, and Touch.HF (timed high-frequency ignition).
• 4 Trigger Modes: 2T, 4T-Start, 4T-Weld, and 4T-LOG.
• E-TIG Mode: Guarantees constant penetration regardless of the arc height (optimal control of welding energy).
• Adjustable Offset: Limits electrode wear.
• Adjustable Waveforms: Customize the welding feel (noise reduction, puddle controllability, positioning).
• Multiple Synergies Available: Pre-programmed settings for various materials: Fe, FeNiCr, Al99, AlSi, AlMg.

MAXIMUM CONNECTIVITY

• Full Traceability: Track all weld beads in accordance with the EN 3834 standard.
• Calibration Mode: Calibrate welding accessories to refine energy calculations.
• Interface Customization: Free customization tool available online.
• USB Data Transfer: Save up to 500 user JOBs as well as the machine configuration via a USB flash drive.
• Torch Compatibility: Works with blade/lever, single and double button, potentiometer, and Up & Down torches.
• Easy Updates: Complete machine and synergy updates via USB flash drive.
• Remote Control: Connectable remote control options.
• Cooling Unit: Optional cooling unit (chiller) available.
• VRD (Voltage Reduction Device): Can be activated to lower the open-circuit output voltage to < 35 V.
