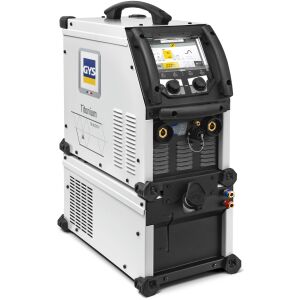

GYS TITANIUM 231 AC/DC Water-Cooled TIG Welder Package (Ref: 090712)

Product Overview

The GYS TITANIUM 231 AC/DC Water-Cooled Package (090712) is a premium, single-phase industrial TIG inverter power source designed to deliver superior arc performance, precision, and reliability for the most demanding welding specialists. Operating on a flexible single-phase supply , this advanced machine delivers a highly controllable output from 3A up to 230A. It ensures consistent, high-end weld quality across all materials, including mild steel, stainless steel, aluminium, copper, and titanium.

While the standalone power source treats liquid cooling as an optional extra , this dedicated commercial package (Ref: 090712) includes an integrated GYS liquid-cooling unit and a high-performance water-cooled TIG torch. This configuration comes fully integrated with professional safety architecture—including dedicated thermal protection, a water flow sensor, and a water level sensor —to safe-guard your torch and machine consumables during intensive, high-amperage fabrication schedules. Featuring a large 5-inch XL colour display and an intuitive control interface, operators can monitor and refine intricate parameter cycles with ease.

7 Advanced TIG Welding Modes

• DC Standard: Provides smooth, direct current welding for the vast majority of ferrous metals.

• DC Pulsed: Restricts total heat input into the weld puddle, minimizing material distortion on thin sections.

• FastPulse: Drives pulsing frequencies up to 20 kHz. This process maintains all the metallurgical benefits of traditional pulsed TIG while eliminating harsh acoustic background noise from the workshop.

• PulseInPulse: Employs a sophisticated double-pulse current control to deliver extreme arc precision on high-noble and exotic alloys, including Titanium, Inconel, and Duplex steels.

• AC Standard: Engineered for high-quality welding of aluminium and its associated alloys (such as AlSi, AlMg, and AlMn).

• AC Pulsed: Limits thermal input to prevent burn-through or warping on thin aluminium sheets.

• AC Mix: Blends alternating AC and DC current streams sequentially to increase travel speeds and optimize oxide cleaning.

Plus multi-process manual stick options, supporting standard MMA, MMA AC, and MMA Pulsed welding with electrodes up to Ø 8 mm.

Patented TIG WIZARD Technology

The TITANIUM 231 features GYS’s patented TIG WIZARD synergistic operating software. This advanced layout maximizes workshop productivity by automating complex configurations for welding aluminium, steel, stainless steel, and copper sections, whether working with or without filler metals.

Operators can quickly select between 5 distinct joint geometries:

• Butt Weld (BW)
• Lap Joint (FW)
• Corner Joint (BP)
• Outer Corner Joint
• Wire Tacking / Edge Fusion

For high-level welding engineers and research facilities, the built-in Wizard Lab mode unlocks full manual developer access, enabling the creation of bespoke, highly customized welding parameter cycles from scratch.

Expert Controls & High-Connectivity Features

• Premium Tack & Spot Modes: Outfitted with 4 distinct fit-up modes, including Spot/Multi Spot for traditional sheet metal assembly , and Tack/Multi Tack for ultra-precise, oxidation-free tacking that reduces thin-sheet deformation.

• E-TIG Power Regulation: Automatically modulates parameters to guarantee a constant penetration depth regardless of variance in the operator's manual arc height.

• Custom Waveform Adjustments: Allows operators to adjust AC waveforms to fine-tune the arc positional control, maximize puddle puddle fluid dynamics, and minimize arc noise.

• Glove-Friendly 5" XL HMI Screen: Features a large, multilingual interface with 3 specific user levels (Easy, Pro, and Expert) to adapt to the skill level of any team member.

• EN 3834 Weld Traceability: Delivers full tracking, data recording, and validation of all completed weld beads to ensure compliance with strict industrial EN 3834 manufacturing standards.

• Advanced Job Memory: Stores up to 500 distinct customized user welding programs (Jobs) for rapid recalls on recurring industrial tasks.

• USB Data Transport: Features a quick-access USB port to seamlessly save or load user jobs, clone machine configurations across multiple units , and execute full machine firmware updates.

• Safety VRD Shield: Includes an optional, switchable Voltage Reduction Device (VRD) to drop the open-circuit no-load voltage below 35V for enhanced protection in hazardous working environments.
