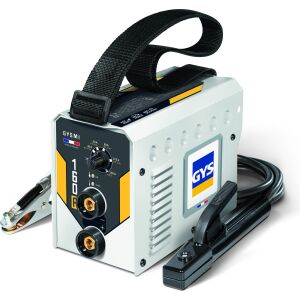

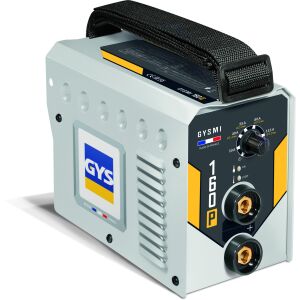

GYS GYSMI 160P Portable MMA Inverter Welder (Ref: 030077)

Product Overview

The GYS GYSMI 160P (030077) is an ultra-portable, single-phase MMA (Stick) welding unit engineered with advanced microprocessor-controlled inverter technology. Delivering an adjustable output from 10A up to 160A, this highly versatile machine offers unique and revolutionary arc dynamics for the light fabrication and maintenance markets.

Weighing a remarkably light 4 kg and built with a highly compact volume, the GYSMI 160P is proudly made in France and optimized for maximum on-site portability. Operating on standard 230V power, its incredibly low electricity consumption makes it an energy-efficient addition to any mobile fabricator’s setup. Designed to run smoothly in direct current, it effortlessly handles all types of electrodes—including rutile, basic, stainless steel, and cast iron.

Key Product Features & Assets

• Advanced Dynamic Arc Control: Powered by microprocessor logic that manages unique arc dynamics, establishing exceptional penetration and total arc stability.
• Micro-Sized Portability: Features a highly reduced unit volume and weighs only 4 kg, allowing contractors to carry the machine effortlessly across a shoulder strap or handle.
• Immediate Arc Ignition: Engineered with a very high 72V no-load voltage to trigger an immediate arc start every single time.
• Constant Arc Delivery: Maintains a stable, constant welding power output that ensures smooth melting performance with direct current.
• Fluctuation & Length Immunity: Formulated to remain entirely unaffected by incoming supply current fluctuations or variations in operator arc length.
• Integrated Hot Start: Temporarily increases current at the start of the weld cycle to prevent cold-lap flaws.
• Integrated Anti-Sticking: Shuts down power instantly if the electrode gets trapped, preventing the electrode from sticking to the workpiece.
• Integrated Arc Force: Delivers an instantaneous increase in current when encountering difficult, narrow welding gaps to keep the puddle fluid.
• Protec 400 Generator Shield: Features built-in protection against supply voltage variations up to +/- 15%, ensuring it is safe to operate on field-ready engine generator sets.

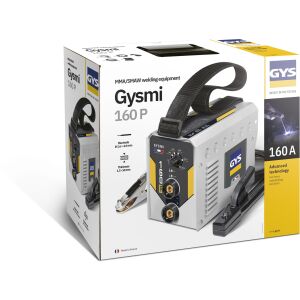

What’s Included in the Box?

The GYSMI 160P package arrives completely organized inside a heavy-duty protective transport suitcase containing:

• GYS GYSMI 160P Inverter Power Source
• Earth Cable (1.6 m length / 16 mm² diameter)
• Electrode Holder (2 m length / 16 mm² diameter)
