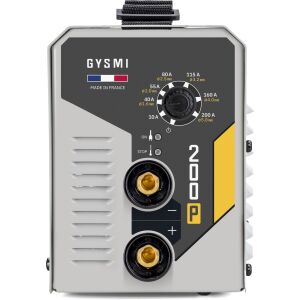

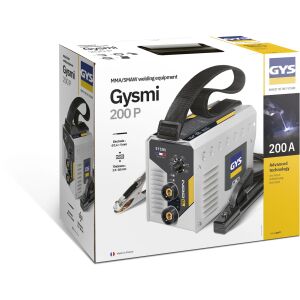

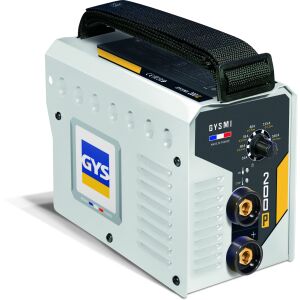

GYS GYSMI 200P Portable MMA Inverter Welder (Ref: 030794)

Product Overview

The GYS GYSMI 200P (030794) is a high-performance, single-phase MMA (Stick) welding machine featuring advanced microprocessor control. Delivering an adjustable welding current from 10A up to a powerful 200A, this unit introduces ground-breaking arc dynamics that provide an unparalleled experience on the market.

Weighing just 5 kg and designed with a highly compact profile (27x18x14 cm), this practical inverter is proudly made in France and optimized for maximum transportability across busy worksites or field locations. Operating on a direct current (DC) output, it ensures a very smooth fusion process and flawlessly handles all manual metal arc applications using basic, rutile, stainless steel, and cast iron electrodes.

Key Product Features & Assets

• Microprocessor-Driven Arc Dynamics: Leverages integrated digital technology to maintain a constant welding power output and a perfectly stable arc.
• Immediate Arc Ignition: Engineered with a high 72.3V no-load voltage that guarantees immediate ignition every time the electrode strikes the metal.
• Mains Fluctuation Immunity: Formulated to remain entirely unaffected by variations in the incoming mains current or changes in the operator's physical arc length.
• Deep Arc Penetration: Delivers clean, very high-quality weld penetration with a smooth direct current fusion cycle.
• Integrated Hot Start: Temporarily boosts the current level during startup to assist with clean arc strikes and eliminate cold-lap flaws.
• Integrated Anti-Stick Technology: Automatically limits the welding current if the electrode freezes, significantly reducing the risk of the electrode sticking to the workpiece.
• Integrated Arc Force: Provides an instantaneous power boost when encountering tight or difficult welding situations to keep the weld puddle moving smoothly.
• Protec 400 Heavy Protection: Factory tested against destructive overvoltages up to 400V, making it fully compatible for use with battery-based power sources.
• Generator Optimization: Built to run safely on mobile job sites off an engine-driven power generator set rated at 10 kVA (+/-15%).

What’s Included in the Box?

The GYSMI 200P system is supplied ready to strike an arc, packed inside a heavy-duty protective site case along with:

• GYS GYSMI 200P Inverter Power Source
• Earth Cable (1.6 m length / 6mm)
• Electrode Holder (2m length / 16mm)
