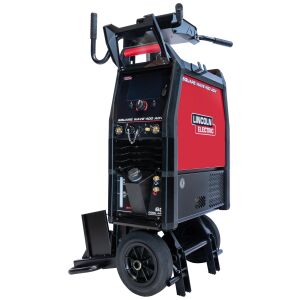

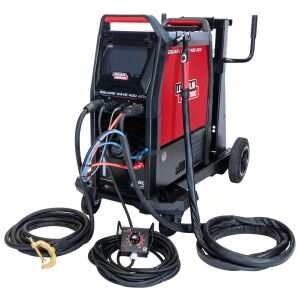

Lincoln Electric Square Wave® 400 ADV Water-Cooled - Prime choice for industrial Aluminium Welding
Lincoln Electric SQUARE WAVE® 400 ADV Water-Cooled is the ultimate solution for industrial TIG AC welding applications. It is combining power and precision welding offering excellent processes and high performance, to increase productivity. The new SQUARE WAVE is designed with the latest energy-saving technology and is ready to work in the most difficult environments, due to its unique design.
To achieve excellent welding results, this TIG Welder utilises both digital and built-in communication systems and devices such as the USB port, making it easy to monitor and track welding operations. Simple automation interface ( A1 ) make it a complete product for most demanding applications.

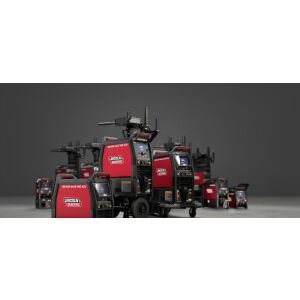

A modular system offering superior mobility to facilitate the most demanding welding applications, within a variety of industry segments.
- Power Sources with a 60% high duty cycle
- New compact, light COOL ARC® 60 offering greater cooling efficiency
- Solid, 4-wheeled or 2-wheeled carts
The Lincoln Square Wave® 400 ADV Water-cooled is suitable for the following application: General fabrication, Heavy fabrication, Structural, Transportation, Chemical processing, Maintenance and repair, Shipbuilding, Offshore, Pipeline, Aerospace, Aluminum ship repair, Anodized aluminum fabrication.
Rugged Reliability of the Lincoln Square Wave® 400 ADV Water-Cooled
60% High duty cycle at 40°C
- High production efficiency
- Digital welding current control
- True HD tested – made for harsh environmental conditions
Inverter engine technology – ECO Friendly
- Lower power consumption due to high efficiency – energy cost saving
- Automatic power-saving modes (standby/shut-down function)
- Generator ready (for correct use, for welding suggested minimum 36KVA and for Gouging 50KVA)
Lincoln Electric Industrial design – ready to use anywhere
- Double-sided fully potted PCB
- Metal construction
- Protection class IP23
- 3 Years full parts and labour warranty
Double-side fully potted PCB
High quality components covered on both sides with a thick layer of silicone to protect against dust and dirt, guaranteeing trouble-free operation and extended service life.
For all conditions
Fits particularly well in any environment and can be used under all climatic conditions (including rain, snow, heat and dust) with optimal protection against metallic dust.
Key Features:
- Light weight – 41 kg
- 7” TFT LCD color display
- Intelligent F.A.N. (Fan As Needed)
- Customer Support on User Interface
- USB Connectivity
- Voltage Reduction Device (VRD)
- Calibration procedure
- Industrial grade: IP23, 3 Years Warranty, no limitation
- AC Frequency – 40-400 Hz
- Soft/Medium/Hard/ pulse
- Simple automation interface (A1)
- Innovative and Intuitive Interface
- BI-LEVEL TIG Function
- Tack for thin
Auto or Manual: The Choice is yours
Simplicity when you want it
AUTO setup technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials. The AC AUTO Balance® technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.
Square Wave® AC Waveforms
- SOFT SQUARE: For a soft arc with great puddle control and wetting action.
- SINE: For welders who like the traditional arc welding, quiet with excellent wetting.
- SQUARE: Increased energy transfer allows for a deeper penetration and faster travel speed.
- TRIANGULAR: Ideal for very thin materials, as the minimal heat input helps to reduce chances of distortion.
Cool Arc® 60 - Water Cooling System
- High cooling power 1,1 kW@25°C
- Reservoir capacity 4,5 l
- Strong pump ensures proper cooling (max. pressure 0,47 MPa)
- Protection class IP23
Cool Arc 60 Key features:
- LED lights inside reservoir: for better visibility of the coolant level
- Flow sensor inside: for gun protection
- Simple Connection and Easy Installation
- Additional water connections on the back: (when the intermediate hose package is connected)
- Flow sensor ON-OFF switch handy during the filling procedure
- Coolant filter: keeps coolant clean
