Portable, Lightweight & Small Size

Compact case designed for harsh welding environments with limited access.

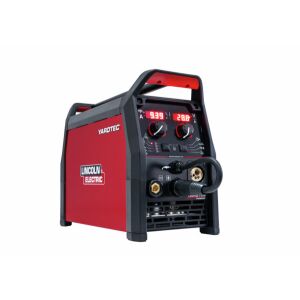

The YARDTEC® 300C STANDARD is a lightweight and portable Lincoln Electric multi-process welder equipped with an integrated wire feeder, perfectly suited for demanding environments like shipyards and construction sites. Its versatility addresses the needs of customers operating in extensive facilities, where equipment mobility, reach extension, and accessing challenging areas are crucial. This unit offers diverse welding capabilities, providing unlimited potential for applications ranging from preparing large components for further welding, undertaking various repairs, to managing everyday light production tasks.

What's Included in the Package: Power cord (3 m), Rolls for 1.0mm and 1.2 mm for steel, Welding cable (3 m) with ground clamp, Gas plug for connecting the gas hose, User manual on USB-stick

Main Advantages

• Duty Cycle: 300A@30% / 200A@100% (400V)
• Dual Voltage: 3x230±10% and 3x400V±15%, 50/60Hz
• ECO Design: High Efficiency= 88%; Idle power <= 20W
• Lightweight only 18kg (without spool)
• Portable Design: HxWxD 381x230x498mm
• Simple to set up and use LEDs User Interface
• Polarity Change no tools needed
• Gas Flow Regulator (installed)
• Voltage Reduction Device (VRD)

YARDTEC® 300C Standard includes

• Power cord (3 m) with IEC 16A/5P 400V IP44 plug
• Rolls for 1.0mm and 1.2 mm for steel
• Welding cable (3 m) with ground clamp
• Gas plug for connecting the gas hose
• User manual on USB-stick

Wire Feeding & Gas Management

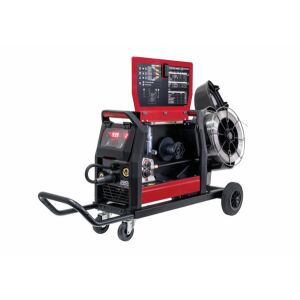

Opened with one lock side cover YARDTEC provide optimum access to the wire spool, wire drive system and gas flow regulator and protect them from dirt, dust, rain and damage:

• Gas Flow Regulator  for shielding gas flow setting, precise adjustment directly on site, practical especially with long hose packages
• Two Roll Professional Wire Drive System, perfect wire feeding

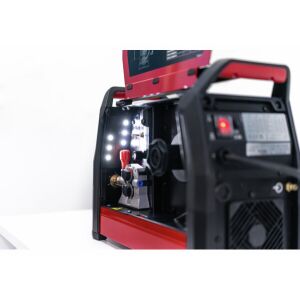

• Internal Lighting  LEDs illuminates the wire drive and wire spool to aid operators working in dark environments

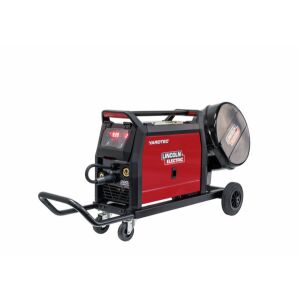

• Possibility of feeding wire from a big spool or from a drum

Rugged Reliability

High production efficiency

• 30% duty cycle at 40°C
• Digital welding current control
• True HD tested – made for harsh  environmental conditions

Inverter engine technology – ECO Friendly

• Lower power consumption due to high efficiency – energy cost saving
• Automatic power-saving modes  (standby/shut-down function)
• Generator ready

Lincoln Electric Industrial design  – ready to use anywhere

• Fully potted PCB
• Metal construction
• Protection class IP23
• 3 Years full parts and labour warranty
