Delivery includes: ESAB Rustler 350c Synergic Pulse power source with Exeor PSF 420w watercooled torch with R4, 4m. 4m input cable, 3 Ph 16A/32A plug, 3m work lead, gas hose with quick connector 4m, drive rolls for 0.9/1.0 and 1.2 mm wire and toolbox.

Also C/w with FOC reel of 1.0mm RADNOR G3Si welding wire. Please note this will show as FOC at the checkout when adding this machine to your basket. Please state in the order notes if you'd prefer 0.8mm or 1.2mm wire instead.

Rustler MIG PRO PULSE compact welding inverters are your solution of choice for the most common welding challenges. Equipped with the latest inverter technology and pulse MIG welding, they combine low energy consumption with optimised welding performance.

Pulse MIG Benefits:

  • Lower heat input – Minimises distortion and burn-through, ideal for heat-sensitive alloys
  • Reduced spatter – Cleaner welds, less post-weld cleanup, and longer torch life
  • High-quality welds – Visually appealing results, especially for aluminium
  • Higher deposition rates – Boosts productivity and travel speed
  • Stable weld pool – Better control, ideal for out-of-position welding
  • Less welding fumes – Safer, cleaner work environment
  • Wire efficiency – One wire size covers multiple applications, reducing inventory
  • User-friendly – Easier to weld, less training required

Ready for All Materials:
Optimized arc programs for carbon steel, stainless steel, aluminium, brazing, and flux-cored wires. Smooth wire feed via robust 4WD mechanism. Synergic model allows easy setup by material thickness.

The synergic model allows operation by setting the material thickness to achieve perfectly balanced welding parameters, allowing even less experienced welders to produce optimal welds.The reliable housing is further enhanced with a flexible accessories storage system, allowing users to store and protect additional tools as needed.

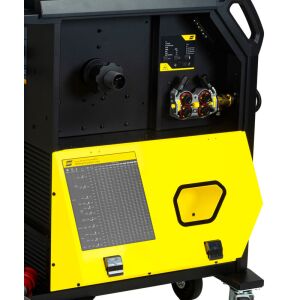

Additional features include inspection window, internally lit-up compartment, torch holder and cable management for an efficient and comfortable working environment.

  • Produce more with a high output current and duty cycle

  • Intuitive panel with direct access to job settings reduces adjustment times

  • Durable housing with flexible accessories storage makes machine an easy to move workstation

  • Inspection window and light in the compartment for better visibility and less downtime

  • Superb arc characteristics, optimized for most common base materials results in less post-weld rework

  • Premium 4WD (Ø 38 mm) feeding mechanism for stable performance and long parts life

  • Built-in MMA welding mode gives flexibility to weld different types of base materials

Industry

  • Industrial and General Fabrication

  • Structural Steel Fabrication

  • Steel Erectors

  • Steel Service Centres

  • Repair and Maintenance

  • Agricultural Equipment

  • Esab Rustler 350 Synergic Pulse Watercooled Mig Welder
  • Esab Rustler 350 Synergic Pulse Watercooled Mig Welder
  • Esab Rustler 350 Synergic Pulse Watercooled Mig Welder
  • Esab Rustler 350 Synergic Pulse Watercooled Mig Welder

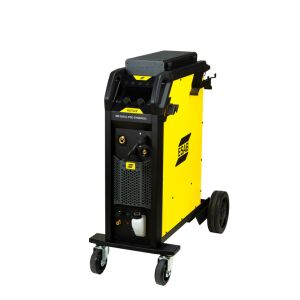

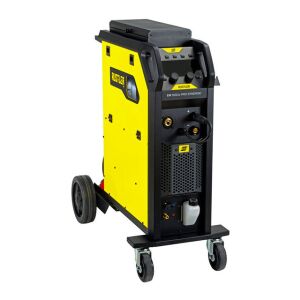

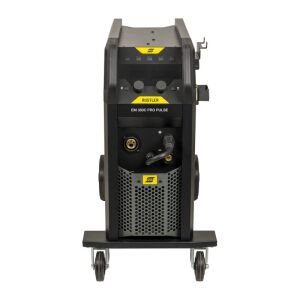

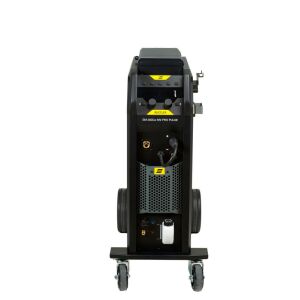

Esab Rustler 350 Synergic Pulse Watercooled Mig Welder

  • By ESAB
  • Stock Code: RUSTLER350W-PUL
  • Your price: £6,600.00 (£5,500.00 ex. VAT)
Free Delivery
Quantity:
PayPal Credit Steps
Standard delivery days are Monday - Friday
Saturday delivery is a non-standard service and subject to an additional charge.

Delivery includes: ESAB Rustler 350c Synergic Pulse power source with Exeor PSF 420w watercooled torch with R4, 4m. 4m input cable, 3 Ph 16A/32A plug, 3m work lead, gas hose with quick connector 4m, drive rolls for 0.9/1.0 and 1.2 mm wire and toolbox.

Also C/w with FOC reel of 1.0mm RADNOR G3Si welding wire. Please note this will show as FOC at the checkout when adding this machine to your basket. Please state in the order notes if you'd prefer 0.8mm or 1.2mm wire instead.

Rustler MIG PRO PULSE compact welding inverters are your solution of choice for the most common welding challenges. Equipped with the latest inverter technology and pulse MIG welding, they combine low energy consumption with optimised welding performance.

Pulse MIG Benefits:

  • Lower heat input – Minimises distortion and burn-through, ideal for heat-sensitive alloys
  • Reduced spatter – Cleaner welds, less post-weld cleanup, and longer torch life
  • High-quality welds – Visually appealing results, especially for aluminium
  • Higher deposition rates – Boosts productivity and travel speed
  • Stable weld pool – Better control, ideal for out-of-position welding
  • Less welding fumes – Safer, cleaner work environment
  • Wire efficiency – One wire size covers multiple applications, reducing inventory
  • User-friendly – Easier to weld, less training required

Ready for All Materials:
Optimized arc programs for carbon steel, stainless steel, aluminium, brazing, and flux-cored wires. Smooth wire feed via robust 4WD mechanism. Synergic model allows easy setup by material thickness.

The synergic model allows operation by setting the material thickness to achieve perfectly balanced welding parameters, allowing even less experienced welders to produce optimal welds.The reliable housing is further enhanced with a flexible accessories storage system, allowing users to store and protect additional tools as needed.

Additional features include inspection window, internally lit-up compartment, torch holder and cable management for an efficient and comfortable working environment.

  • Produce more with a high output current and duty cycle

  • Intuitive panel with direct access to job settings reduces adjustment times

  • Durable housing with flexible accessories storage makes machine an easy to move workstation

  • Inspection window and light in the compartment for better visibility and less downtime

  • Superb arc characteristics, optimized for most common base materials results in less post-weld rework

  • Premium 4WD (Ø 38 mm) feeding mechanism for stable performance and long parts life

  • Built-in MMA welding mode gives flexibility to weld different types of base materials

Industry

  • Industrial and General Fabrication

  • Structural Steel Fabrication

  • Steel Erectors

  • Steel Service Centres

  • Repair and Maintenance

  • Agricultural Equipment

Technical Specification
Input Voltage
400 V 15 %, 3 Φ, 50/60 Hz
Primary current IMAX
20A
Primary current leff
13A
Idle Power
< 40 W
Mains Cable
4m 4x2,5mm², 4m
Supply Plug
CEE16
Rated kVA
14.0 kVA
Recommended Generator
17 kW
MIG/MAG Welding Output
350 A/31.5 V
Current Range, MIG/MAG
30-350 A
Voltage Range, MIG/MAG
15.5-31.5 V
Open Circuit Voltage, MIG/MAG
71.0 VDC
MMA Welding Output 40% Duty Cycle
320 A/32.8 V
Current Range, MMA
20-320 A
Voltage Range, MMA
20.8-32.8 V
Open Circuit Voltage, MMA
66.6 VDC
Power Factor at Max Current
0.8
Efficiency at Max Current
85%
Wire Feed Speed Range
1.5 – 22 m/min
Maximum Plate Thickness
Mild Steel
0.6 – 13 mm
Aluminium
1.2 – 10 mm
Stainless Steel
1.0 – 10 mm
Wire Diameter Range
Mild Steel
0.8 - 1.2mm
Stainless Steel
0.8 - 1.2mm
Aluminium
0.8 - 1.2mm
Flux Cored
0.8 - 1.2mm
Wire Spool Size
200 mm and 300 mm
Approvals
CE / UKCA
Enclosure Class
IP23
Operating Temperature
-10 to +40 °C
Power Source Dimensions
977x487x1230mm
Power Source Weight
80 kg
Cooling Power
1 kW
Cooling Volume
1.8 l
Maximum Flow
1.9 l/min
Maximum Pressure
4.5 bar
